Blaster 2

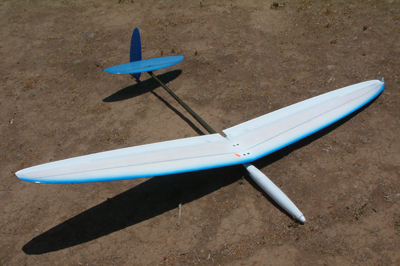

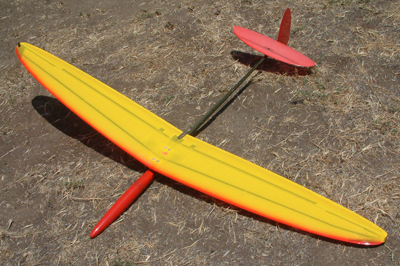

The Blaster 2 is latest hollow-molded discus launch glider utilizing Dr. Drela's airfoils and planform. The hollow-molded wings are made in CNC machined molds that are the only way to exactly reproduce the new generation of airfoils.

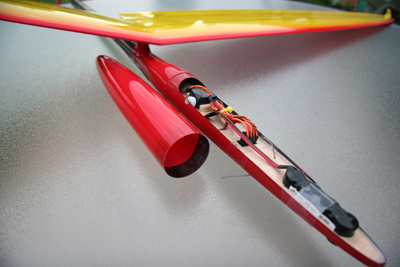

Pod - The pod is Kevlar reinforced with a horizontal strip of carbon fiber extending back to the boom. The uni-directional carbon fiber boom is larger in diameter than other DHLs making it stiffer for the most arduous launches. A removable nose cone allows for easy access to RC components..

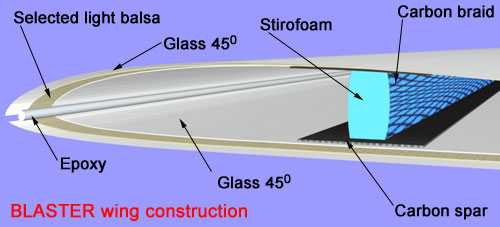

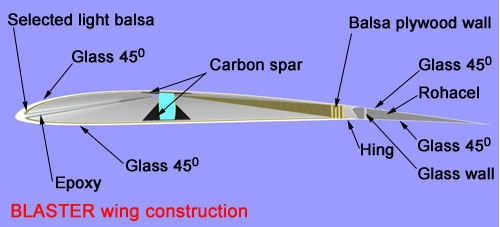

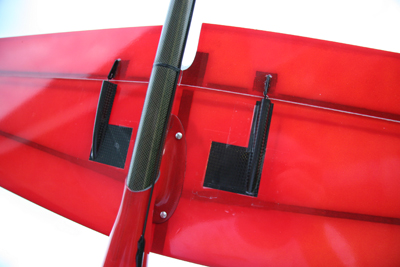

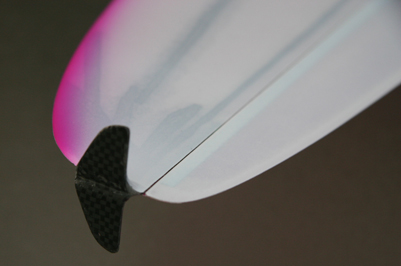

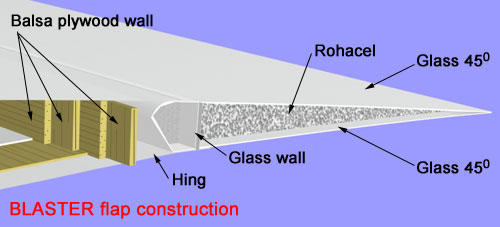

Wing - The airfoils used on the Blaster 2 are a result of Dr. Drelas continuing refinement of discus launch glider airfoils. The glassed balsa skin wing surface finish is of exceptional quality as a result of highly polished molds. The elliptical wing and transitioning airfoils give the wing the most efficient planform available. A molded "T" launching blade allows for comfortable launches.

  • Blaster 2Blaster 2
  • Blaster 2Blaster 2
  • Blaster 2Blaster 2

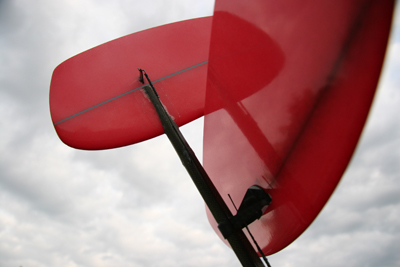

Tail Group - The Blaster 2 features new hollow-molded tail surfaces to reduce drag, provide for higher launches and improve handling at low speeds. A one-gram miniature v-mount allows for the full flying stabilizer to give the pilot infinite pitch control.

Complete hardware package, teflon tubing, carbon pushrods and carbon horns included.

Specifications:

Wing Span

Wing Area

Flying Weight

Wing Loading

Airfoil

Controls

59"

372 sq. in.

11.0* oz.

4.25 oz./sq. ft.

AG45/AG46/AG47

REF


* depending on installed equipment

Flaperon Settings:

The recommended flaperon settings are:

Launch Mode -2° Smooth bottom surface
Cruise Mode Smooth top surface
Landing Mode 40°

Availability, Pricing, Ordering:

RH Blaster 2 (Launch Blade on Left Wing)
LH Blaster 2 (Launch Blade on Right Wing)
Special Order - Please call







Suggested RC Components

Two KST 08N or Dymond D60 Servos

4-cell 300maH NiMH Receiver Battery

Jeti 6-ch. Receiver

Videos

Blaster Video 1
Blaster Video 2
Blaster Video 3

Documents

Blaster 2 Building Instructions

Other

Blaster 2 Replacement Parts
