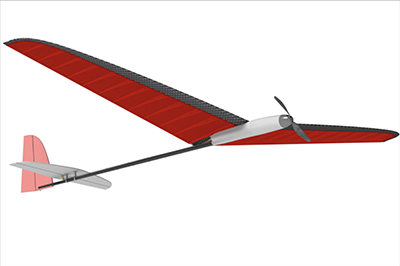

ELF Pro EL is the electric version of the well-known mini 1m DLG ELF.

Due to its amazing small size, the pilot can enjoy in places where he would have never dared to fly before (parking lots, beaches, etc.). The ready-to-fly model fits any car and will be ready to fly whenever you are.

Thanks to Dr. Drela’s aerodynamic airfoils, the ELF Pro EL is an easily-controllable, gentle, lightweight and durable plane. Even novice pilots can fly the ELF Pro EL.

ELF Pro EL is 99% ready out of the box. The wing is covered, the fuselage is assembled, pushrods are installed and the horizontal and vertical stab are ready to go. Assembly time is about 30 minutes to install the servos, glue the fin and two horns on.

Color Options:

Contents:


KIT CONTENTS

1. Accessory bag

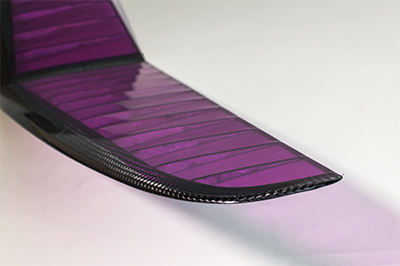

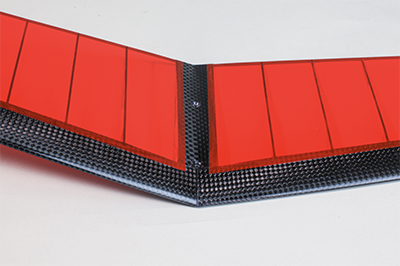

2. ELF Pro El wing
3. ELF Pro El fuselage with already installed rods, stabilizer pylon
4. ELF Pro El nose cone
5. ELF Pro El canopy

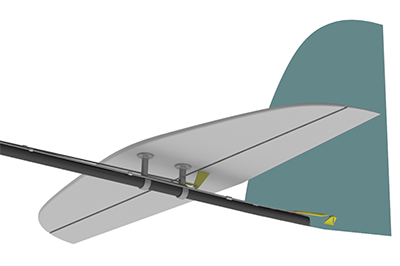

6. ELF Pro El stabilizer with ready elevator
7. ELF Pro El fin with rudder

ACCESSORY BAG CONTENTS

1. 3x M2x5 screws to install fuselage servo frame
2. Fuselage servo frame
3. M2x14 screw to install fuselage servo frame
4. M2x5 screw to install fuselage servo frame
5. M2x8 screw to install horizontal stabilizer
6. M3x8 wing mounting screw
7. Elevator and rudder horns
8. Adapter for 1105 motor

Specifications:

Wing Span

Wing Area

Flying Weight

Wing Loading

Airfoil

Controls

39"

181 sq. in.

4.4 oz.

3.44 oz./sq. ft.*

AG12, AG13, AG14

Rudder, Elevator, Motor


* depending on installed equipment

Availability, Pricing, Ordering:

ELF Pro EL

ELF Pro EL w/protection bag - $240



Accessories

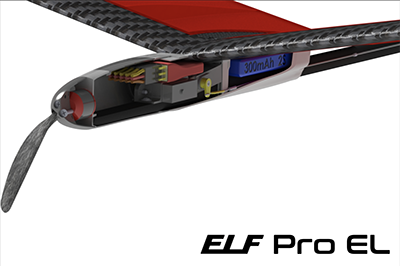

Suggested RC Components
Two KST X06N Servos
Spektrum AR410 Receiver (remove case)
2S1P LiPo 240-450 mAh. Max size: 15x21x47mm
Motor 1106 5500-8000KV or 1105
ESC 7-12A
Graupner CAM folding prop 4,7”/2,2”

Documents

Assembly Instructions

Other

Replacement Parts
