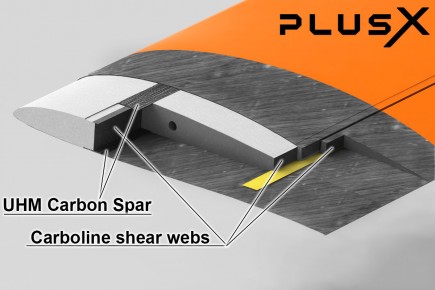

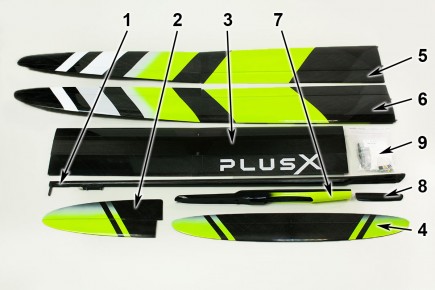

Plus X - featuring the world's best F5J wing by Joe Wurts:
- the best thermal and penetration performance in one wing;

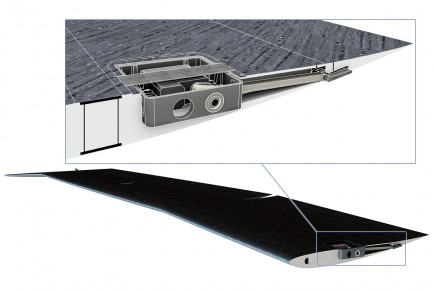

- the six-servo wing provides the best thermaling combination of aileron and flaperon efficiency;
- wide flaps provide extremely smooth airfoil in all flight modes;
- extreme slow and stable landing approaches are possible due to the six-servo wing;

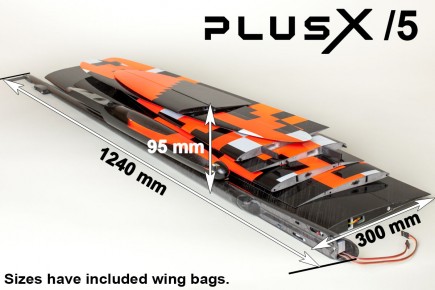

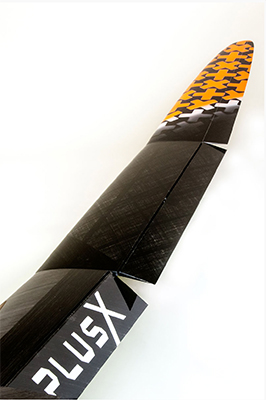

- Plus X/5 consists of a travel-friendly five-piece wing;
- Plus X light version is merely 7gm over the FAI minimum weight limit;

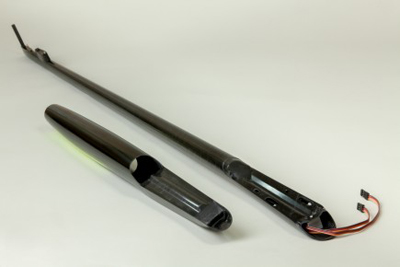

Fuselage:

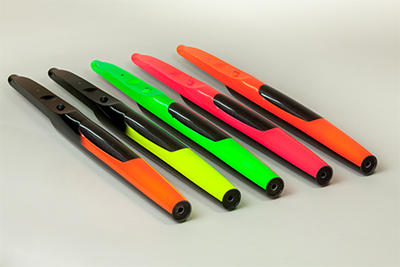

- fuselage can be separated into two parts for ease of travel;

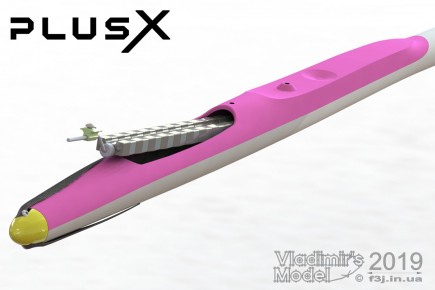

- easy and reliable ballasting method;
- carbon canopy;
- strong and light weight Carboline pod and boom;
- servo mounting systems for servos;
- pre-installed carbon pushrods for tail servos;
- oversize nose diameter allowing trimming of nose to fit motor and/or adjust CG (54mm to 38mm) based on location of motor;

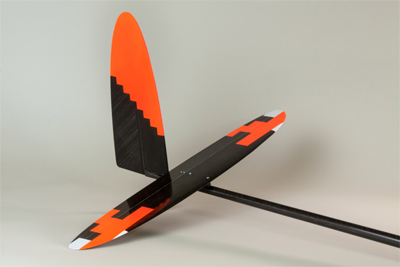

Tail:
- light, strong, efficient and low-drag tail;
- high-aspect ratio fin utilizing efficient airfoils designed by Joe Wurts;
- extreme rigide and light elevator and rudder control system;

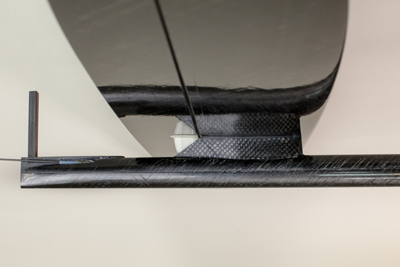

- simple & easy fuselage mounting system for fin and stab;
The Plus Pro will be shipped in a returnable Sportube.

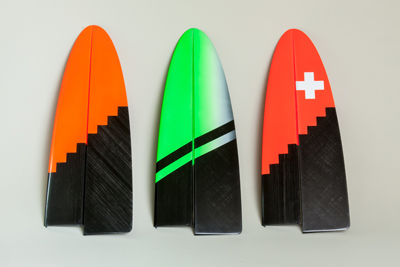

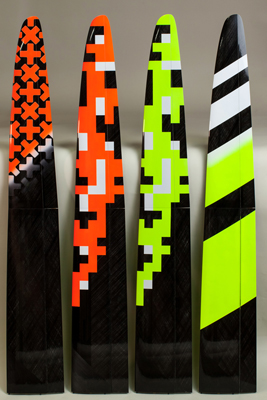

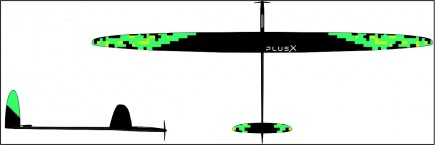

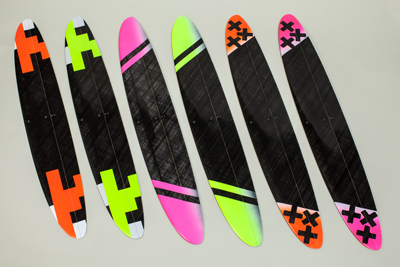

Available Wing Color Schemes:

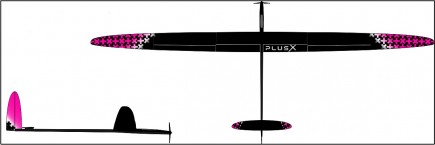

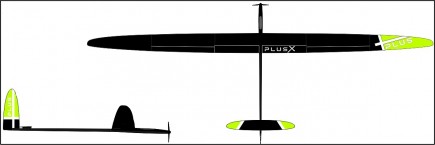

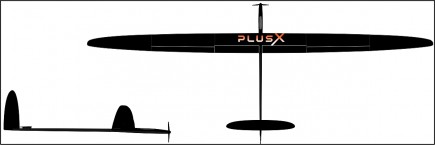

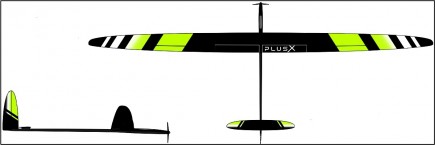

Top Wing Paint Pattern #1 |
Top Wing Paint Pattern #2 |
Top Wing Paint Pattern #3 |
 |
 |
 |
Top Wing Paint Pattern #4 |
Top Wing Paint Pattern #5 |

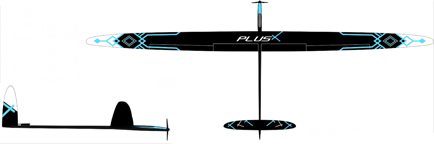

Top Wing Paint Pattern #6 |
 |
 |
 |

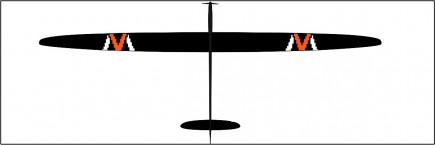

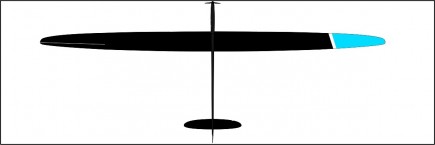

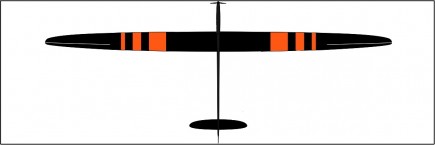

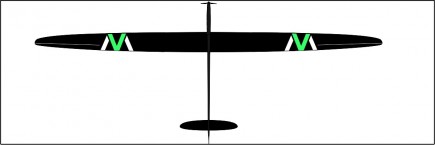

Bottom Wing Paint Pattern #1 |
Bottom Wing Paint Pattern #2 |
 |
 |
Bottom Wing Paint Pattern #3 |
Bottom Wing Paint Pattern #4 |
 |
 |

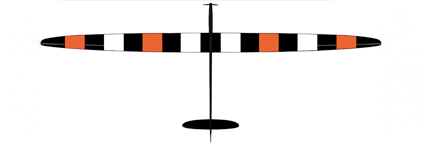

Bottom Wing Paint Pattern #7 |
|
 |
|

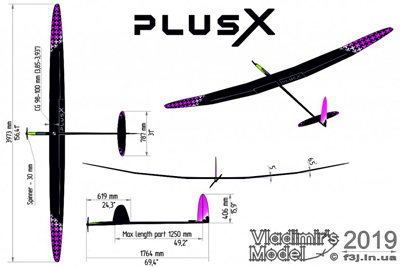

Specifications:
|
|
|
|
|
|
Wing Loading |
|
Airfoil |
Plus X
|
|
69.4"
|
1,196 sq. in.
|
29.3 oz.
|
42.3* oz.
|
5.09 oz./sq. ft. (14gr/dm²)
|
2AFRE
|
JW |
Plus X Light |
156" |
69.4" |
1,196 sq. in. |
26.1 oz. |
36.1* oz. |
4.34 oz./sq. ft. (12gr/dm²) |
2AFRE |
JW |
Plus X Windy |
156" |
69.4" |
1,196 sq. in. |
33.9 oz. |
47.6* oz. |
5.73 oz./sq. ft. (16gr/dm²) |
2AFRE |
JW |
|
|
|
|
|
|
|
|
|
* depending on version and installed equipment |
Availability, Pricing, Ordering:
|
Plus X - Starting at $2,200.00
Plus X/5 - Starting at $2,235.00
Accessories
|
|
|
Suggested RC Components

MKS HV6110 Servos

KST X08H V5 Servos

Ballast

Wing covers

Spektrum Receiver
Documents

Plus X Building Instructions

Other

Plus X Replacement Parts
3D Printing Files

Plus X Fuselage Ballast Insert
Plus X Fuselage MKS 6110 Mount Plate
Plus X Fuselage KST X08H Mount Plate
|
